BSA 59-DP-LH - Door Pillar Sub-Assembly, LH, Type 2

Door Pillar Sub-Assembly, LH, Type 2

Second type Left Hand Side Door Pillar Sub-Assembly used on early Series 2/2a models where wings (fenders) are attached using Spire nuts.

Door hinges are attached using square nuts and floating captive plate.

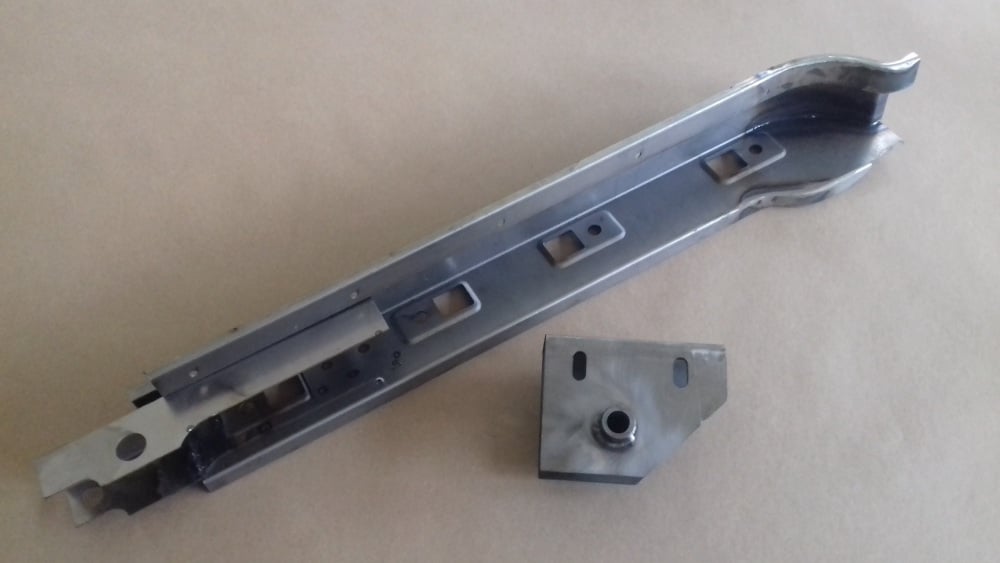

This is the complete Door Pillar Sub-Assembly, comprising:

• Door Pillar
• Lower Stiffener
• Lower Foot
• Captive Nut Plate for Lower Door Hinge
• Bridge Piece to trap Captive Nut Plate

• Tube for Dash to Chassis Tie Bolt

Dash to chassis foot sub-assembly is supplied separately from the lower stiffener to allow 100% accurate fitment. Foot is fillet welded to stiffener once jigged in position.

Unlike other replacement door pillars, Pegasus Parts Door Pillars are manufactured to the orginal specification, i.e. with full height 'gutter' for the lower door weather seal, including the double bend at the vehicle waist.
