PSK 1226 - Complete Set of Window Glass Channels, Series 3, 109" Station Wagon upto August 1972 only

Complete Set of Window Glass Channels, Series 3, 109" Station Wagon upto August 1972 only

Consolidated kit comprising of all the Window Channels and stainless screws for the 2 Front Door Tops, Station Wagon Rear Side Doors and the Station Wagon Rear Sliding Windows.

Kit is suitable only for models:

• Front Door sliding window is locked into position at the bottom of the glass with the plastic push button lock.

• The Rear Side Door Tops are the Series 2/2a type with the metal twist knob at the top which locks the sliding glass in the closed position.

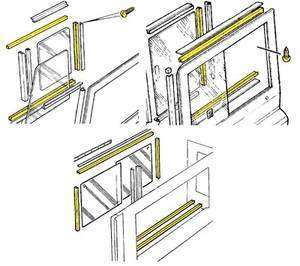

Kit comprises items highlighted in yellow in drawings. (Drawings show incorrect dome headed self-tapping screws):

For Front Door Tops:

• Bottom Window Channel, with slot for plastic type lock tongue x 2

• Rear Window Channel x 2

• Top Window Channel x 2

• Countersunk Head Stainless Steel Self-tapping Screws x 26 off.

For Rear Side Door Tops:

• Bottom Window Channel, without slot for plastic type lock tongue x 2
• Rear Window Channelx 2
• Top Window Channel x 2
• Countersunk Head Stainless Steel Self-tapping Screws x 26 off.


For Station Wagon Rear Sliding Windows:

• Upper Channel x 4

• Lower Channel x 4

• Upright Channel x 4

• Countersunk Head Stainless Steel Screws x 52


Suitable also for earlier Series 2/2a 109" Station Wagon models with Series 3 type Front Door Tops.

All 24 channels are pre-cut to the correct lengths.

Bottom channel for Front Door tops has slot for window lock punched in the correct position.
