BPK 2-109-4-R-1 - Brake Pipe and Hose Kit, Series 2, 109", RHD, Early 1958 only

Home > 2 - Parts manufactured by Pegasus Parts > Brake Pipes and Brake Pipe Kits (DND) > Complete Pipe and Hose Kits > Series 2 and 2a

BPK 2-109-4-R-1 - Brake Pipe and Hose Kit, Series 2, 109

  • BPK 2-109-4-R-1 - Brake Pipe and Hose Kit, Series 2, 109", RHD, Early 1958 only

  • Land-Rover Series 2 and 2a
  • £90.00
    exc.

:  at  £90.00  each

Out of stock.

Brake Pipe and Hose Kit, Series 2, 109", RHD, Early 1958 only

Suitable only for very early Series 2, 109" RHD models with bottom outlet reservoir and CB type brake master cylinder.

All brake pipes are cupro-nickel alloy with solid brass unions. Short pipes are pre-formed on our tooling and jigs. Long pipes are supplied coiled.

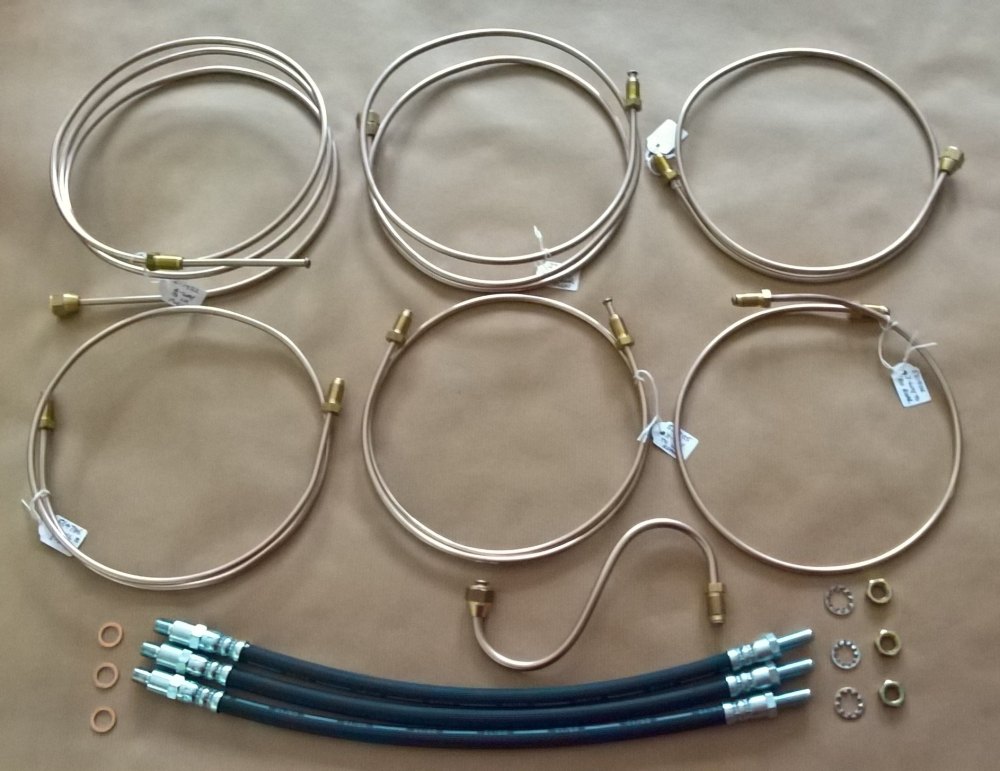

Complete brake pipe and hose kit comprising:

  • Brake Pipe, Twin Bottom Outlet Reservoir to CB type Master Cylinder.
  • Brake Pipe, CB type Master Cylinder to 5-way connector.
  • Brake Pipe, Connector to LH Front Flexible Hose.
  • Brake Hose for Front LH Wheel Cylinder.
  • Brake Pipe, Connector to RH Front Flexible Hose.
  • Brake Hose for Front RH Wheel Cylinder.
  • Brake Pipe, Connector to Rear Flexible Hose.
  • Brake Hose for Rear Pipes.
  • Brake Pipe, Rear Connector to LH Rear Wheel Cylinder.
  • Brake Pipe, Rear Connector to RH Rear Wheel Cylinder.
  • Half Nut for Flexible Hose x 3 off.
  • Spring Washer for Flexible Hose x 3 off.
  • Sealing Washer, Flexible Hose to Wheel Cylinder or Rear Connector x 3 off.

Each 3/16" pipe is labelled with its position to simplify fitting.
